1000pcs APA102 super LED TaiWan
A packaging including:
1×1000pcs APA102 5050 RGB LED lamp
belt / roll packaging
Notice: Please confirm the delivery time with us before placing the order.
General Description

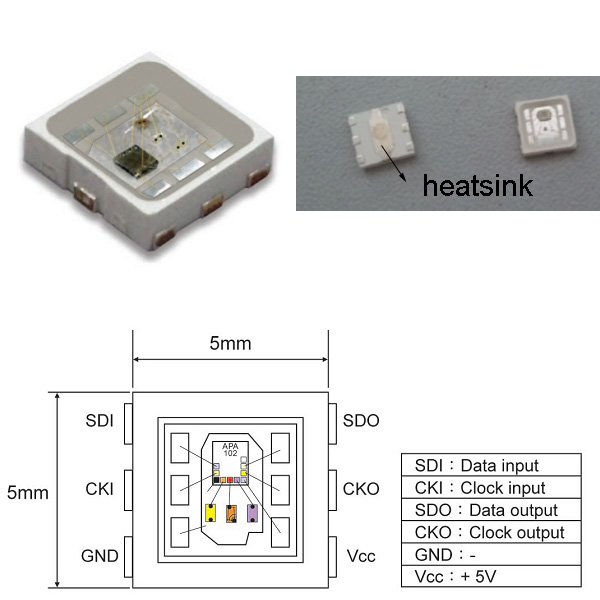

APA102 is a type ic for the three color RGB Diming control strip and string, using the CMOS process to provide three-color RGB LED output driver to adjust the output with 256 gray scale and 32 brightness adjustment, APA102 with 2 signal output: clock and data.
Feature
CMOS process,low voltage ,low consumption
Synchronization of two-lane
Choose positive output or negative RGB three-color LED output
8 bit(256 level) color set ,5bit(32 level) brightness adjustment
Build-20ma constant current output
With self-detection signal build in support for continuous oscillation PWM
output ,can be maintained static screen
APA102 super LED specification.pdf
